Semilla Loom Assembly Instructions

For reference at anytime, please visit the product page for a full 3D model of the loom.

1. Unbox and Identify Parts:

Before you begin assembly, carefully unpack your loom and verify you have all the following components:

Main Components:

  • 2 x Loom Frames (Note: 4 Bearing Caps should already be attached to these)
  • 4 x Beams (Standard beams)
  • 2 x Rollers (These are thicker beams with 2 small holes in the top)
  • 2 x Bars
  • 2 x Brakes
  • 2 x Cogs
  • 2 x Handles
  • 2 x Roller Caps
  • 2 x Heddle Blocks (Left and Right)
  • 2 x Dowels
  • 1 x Shuttle
  • 1 x Rigid Heddle

Hardware:

  • 8 x M6 x 1 mm x 8 mm Bolts (A - Shortest, pre-assembled on frames)
  • 12 x M6 x 1 mm x 16 mm Bolts (B - Medium length)
  • 4 x M6 x 1 mm x 35 mm Bolts (C - Longest length)
  • 1 x M6 Hex Tool
  • 2 x Nylon Strings

Note: The handles and associated roller parts can be assembled on either the left or right side, whichever you prefer. The design is universal.

Warning: Do not overtighten bolts, please tighten them securely but not excessively. You should not be struggling when tightening.

2. Assemble the Main Frame:

  • Take the two Loom Frames and the four Beams.
  • Using eight of the B bolts (M6 x 1 mm x 16 mm), insert them through the designated holes in the Loom Frames and screw them securely into the ends of the Beams.
  • Repeat for both frames until the main structure is connected and stable.

3. Install the Brakes:

  • Locate the two Brakes.
  • Insert one Brake into the designated slot on the Loom Frame side where you intend to place the handle for the first roller. Repeat for the second Brake on the corresponding side for the second roller.

4. Assemble the Roller Handles:

  • Take one Roller, one Handle, and one Cog.
  • Snap the Cog firmly into the Handle.
  • Align and press the Handle (with the cog attached) into the end of the Roller.
  • Secure the Handle to the Roller using one of the C bolts (M6 x 1 mm x 35 mm) and the M6 Hex Tool.
  • Repeat this step for the second Roller, Handle, and Cog.

5. Install the First Roller:

  • Take one of the partially assembled Rollers (with handle/cog attached).
  • Identify the side of the loom frame where you installed the first Brake and wish to have the handle.
  • Carefully insert the end of the Roller without the handle through the hole in the Bearing Cap on the opposite side of the frame.
  • Push the Roller through the frame until the handle end reaches the Bearing Cap on your chosen handle side.
    • Important: The fit against the bearing is intentionally tight. Support the Bearing Cap from the inside as you push the roller through to prevent it from popping out.
  • The roller should now span both frames and spin freely on the bearings.

6. Secure the First Roller:

  • Locate one Roller Cap.
  • On the side of the loom opposite the handle you just installed, insert the Roller Cap through the Bearing Cap hole and into the end of the Roller.
  • Press the Roller Cap in firmly. While supporting the roller on the handle side, screw the second C bolt (M6 x 1 mm x 35 mm) through the Roller Cap and into the Roller using the M6 Hex Tool.

7. Install and Secure the Second Roller:

  • Repeat steps 5 and 6 for the second partially assembled Roller, installing it though the remaining set of Bearing Caps and securing it with the remaining Roller Cap and C bolts.

8. Attach the Heddle Blocks:

  • Locate the Left and Right Heddle Blocks.
  • Position them on the corresponding inner sides of the Loom Frames.
  • Using the remaining four B bolts (M6 x 1 mm x 16 mm), screw the Heddle Blocks securely onto the Loom Frames.

9. Attach dowel to rollers:

  • Locate the nylon string and dowels.
  • Run the unknotted side of the string through one of holes in the roller.
  • Now run the string through one hole on the dowel on the rounded side.
  • Follow the flat side of the dowel and run the string back through the other hole on the flat side of the dowel.
  • Now finally run the string through the final hole of the roller and tie a double knot.

Assembly Complete!

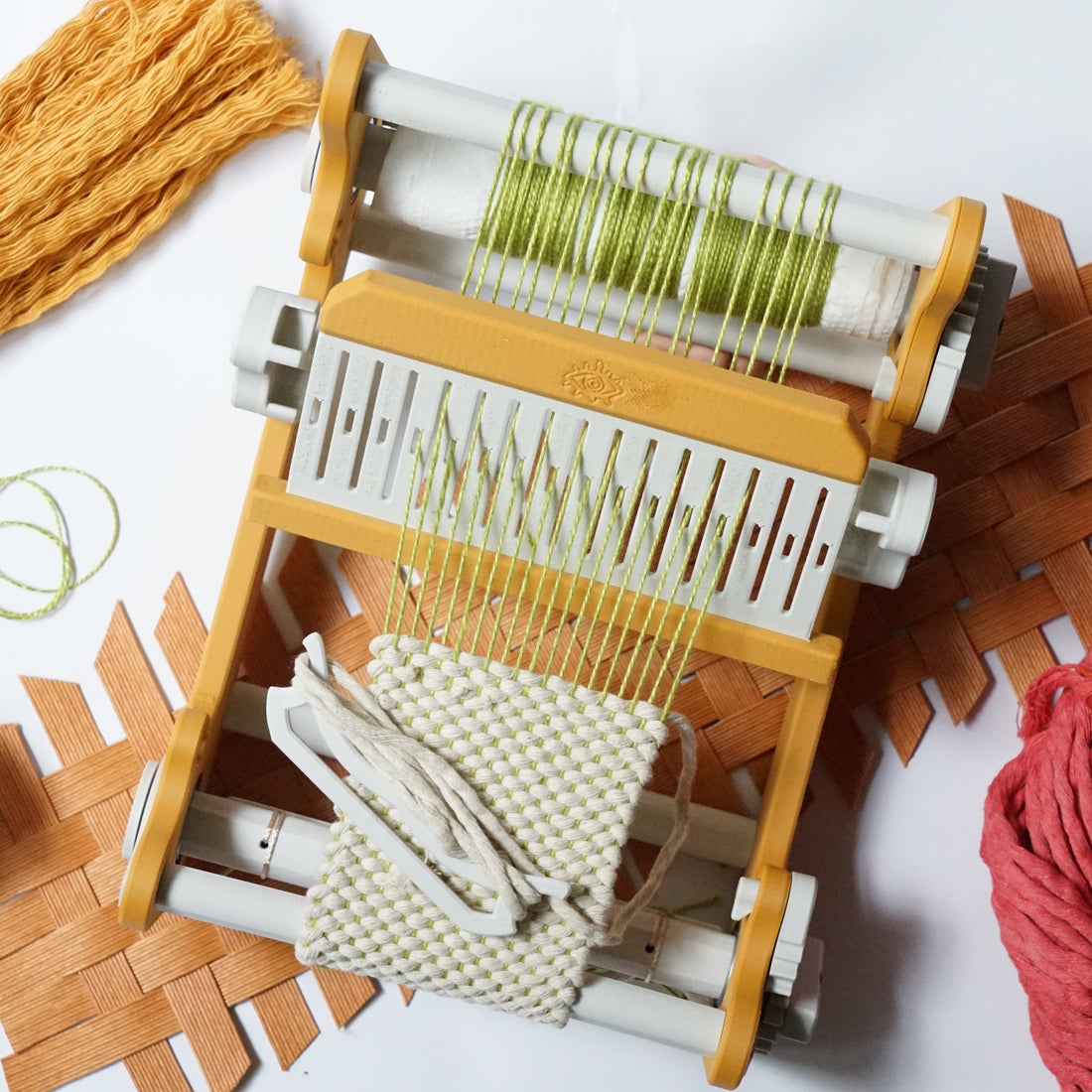

Congratulations, your Semilla loom is now fully assembled and ready for warping. Remember the taller side of the frame is the back and the shorter side is the front!
